99.95% High Purity Tantalum Grounding Ring

99.95% High Purity Tantalum Grounding Ring Description

Tantalum is a rare metal with a high melting point, excellent corrosion resistance and electrical conductivity. 99.95% High Purity Tantalum Grounding Ring is a metal grounding ring for circuit connection. It plays the role of grounding protection, anti-interference and heat dissipation management in electronic equipment. It can effectively guide the static electricity generated on the equipment to the ground, thereby ensuring that the equipment Normal internal signal transmission and stable operation. 99.95% High Purity Tantalum Grounding Ring has the characteristics of good ductility, high mechanical strength, good cold working performance, excellent electrochemical properties and corrosion resistance, good conductivity and heat dissipation, long service life, high temperature resistance, etc. Its inner diameter and outer diameter diameter can be customized to match other equipment or components. If necessary, please feel free to contact us by email.

99.95% High Purity Tantalum Grounding Ring Specifications:

Grade

R05200,R05255,R05400

Purity

99.95%

Technique

Rolling,Cutting,Forming,Machining,Grinding

Density

16.68g/cm3

Size

OD:2-30mm

ID:1-25mm

Thickness

0.125mm

Tab

2-6mm

Melting point

2996℃

Surface

Black,Acid pickling,Alkaline cleaning,Polished

Standard

ASTM,GB

Certification

ISO 9001

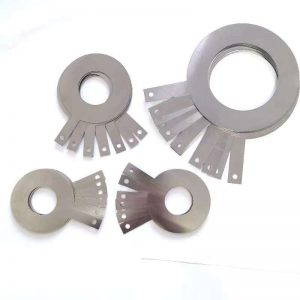

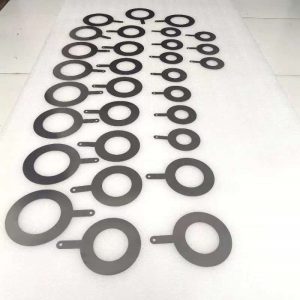

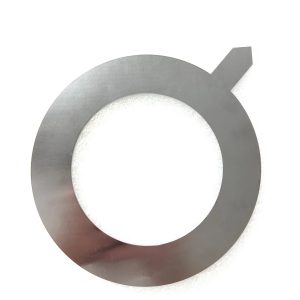

99.95% High Purity Tantalum Grounding Ring Picture

微信图片_20231208151818 微信图片_20231208151821

微信图片_20231208151744
