Beryllium Flange
Beryllium Flange Description
The selection of high purity beryllium material made of beryllium sheet and then rolling and cutting processing into the required size specifications, after the beryllium window and sealing material welding, finally will be a comprehensive quality inspection, including dimensional accuracy, surface roughness, X-ray transmission rate, vacuum leakage rate and other indicators detection, to ensure that the product meets the requirements of use.
Features
- Beryllium has a low atomic number, less absorption and scattering of X-rays, and very high transmittance.
- Excellent vacuum sealing performance, can effectively prevent external air or impurities from entering the vacuum system.
- High melting point, small thermal expansion coefficient, can still maintain good performance in high temperature environment.
- High mechanical strength, not easy to deform or crack under high pressure and vibration.
- Good oxidation resistance and corrosion resistance, long service life.
Application
Beryllium Flange has a high efficiency transmission rate of X-ray, which can be used in X-ray tubes of medical X-ray machines, CT scannersr, and radiotherapy instruments, helping to produce a stable, high-quality X-ray beam while ensuring a high vacuum environment in the tube, thus improving imaging clarity and accuracy. Help doctors diagnose conditions more accurately.
In aerospace, automotive manufacturing, electronic equipment, and other industries, X-ray components are often used for non-destructive testing. Beryllium Flange is used in X-ray detection equipment, which enables X-rays to be accurately irradiated to the tested object, detecting tiny defects inside the object, ensuring product quality and safety.
Beryllium Flange Dimension
|
Grade |
Be1 |
|
Purity |
≥99.5-99.99% |
|
Diameter |
φ30mm-100mm or Custom |
|
Thickness |
25-1000μm |
|
Density |
1.85g/cm3 |
|
Shape |
Round |
|
Delivery Time |
About 20 days |
|
Certification |
ISO 9001 |

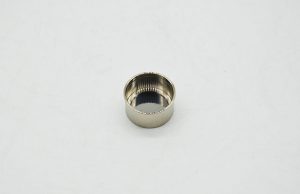

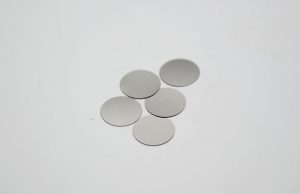

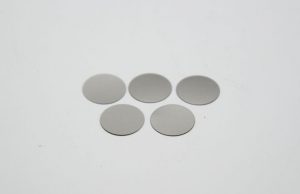

Beryllium Flange Pictures
