Copper Tungsten Spot Welding Electrode

Copper Tungsten Spot Welding Electrode is the composite of tungsten and copper which own it excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation. Tungsten copper alloy is a biphase alloy of tungsten and copper, the material has high temperature resistant of tungsten and high conductivity property of copper. Because the melting point of this two kinds of metals is vary considerably, it can not casting by the traditional method.  tungsten copper adopts mix powder – pressure – sintering – melt infiltration process route. Due to the adoption of advanced equipment, our tungsten copper alloy has good and stable quality.

Physical and Mechanical Properties Copper Tungsten Spot Welding Electrode:

Composites

Nominal Composition
  (% Weight)

Density
  (g/cm3, ≥)

Electrical Resistivity
  (20°C, µΩ·cm, ≤)

Electrical conductivity
  (IACS%, ≥)

Hardness(≥)
  Brinell Hardness

Bending Strength



MPa

Kgf/mm2

MPa

Kgf/mm2



CuW50

50% Copper
  50% Tungsten

11.85

3.2

54

1128

115

—

—

CuW55

45% Copper
  55% Tungsten

12.3

3.5

49

1226

125

—

—

CuW60

40% Copper
  60% Tungsten

12.75

3.7

47

1373

140

—

—

CuW65

35% Copper
  65% Tungsten

13.3

3.9

44

1520

155

—

—

CuW70

30% Copper
  70% Tungsten

13.8

4.1

42

1716

175

667

68

CuW75

25% Copper
  75% Tungsten

14.5

4.5

38

1912

195

706

72

CuW80

20% Copper
  80% Tungsten

15.15

5.0

34

2158

220

736

75

CuW85

15% Copper
  85% Tungsten

15.9

5.7

30

2354

240

765

78

CuW90

10% Copper
  90% Tungsten

16.75

6.5

27

2550

260

804

82

Applications of Copper Tungsten Spot Welding Electrode

Tungsten-Copper electrodes are suited to a wide range of high-speed, automated welding operations. For brazing copper and copper alloys, Tungsten-Copper electrodes offer excellent electrode heat balance for applications such as high-speed spot welding of wire harnesses for use in motors, automobiles, and anywhere complex or simple wire harnesses are used. Other applications include line switches for battery packs, as well as electrical components for manufacturing lines of circuit breakers and electrical switches.

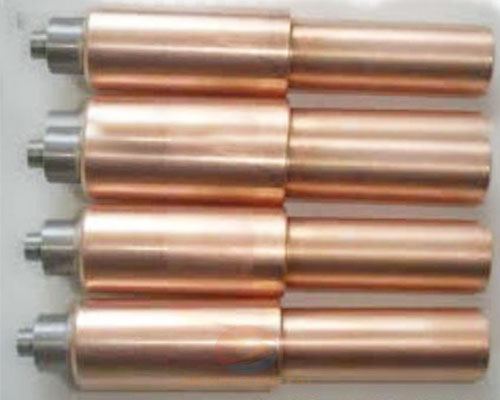

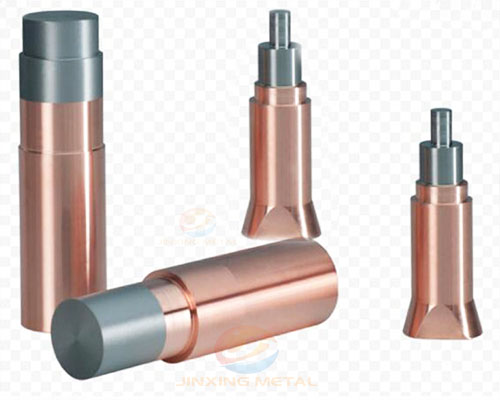

Copper Tungsten Spot Welding Electrode Picture:

Tungsten Copper Projection Welding Electrode 013
