Grade 2 Cold Rolled Pure Titanium Strip
ASTM B337 Grade 2 Cold Rolled Pure Titanium Strip
Pure titanium strip have the advantages of titanium and titanium alloys and have a range of excellent properties such as good corrosion resistance, high specific strength, non-magnetic, high biocompatibility, low ultrasonic resistance and good shape memory function. As a result, titanium and titanium alloy wires are widely used in many fields such as aerospace, petrochemical, healthcare, automotive, construction, sports and leisure products.
Chemical Composition of Pure Titanium Strip
|
Grade |
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
|
Gr1 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr2 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr3 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr5 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
|
Gr7 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
|
Gr9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
|
Gr12 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile Requirements of Pure Titanium Strip
|
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 2in.Or 50mm % (min) |
||
|
Min |
|||||
|
KSI |
MPA |
KSI |
MPA |
||
|
Gr1 |
35 |
240 |
20 |
138 |
20 |
|
Gr2 |
50 |
345 |
40 |
275 |
18 |
|
Gr3 |
65 |
450 |
55 |
380 |
18 |
|
Gr5 |
130 |
895 |
120 |
828 |
10 |
|
Gr7 |
50 |
345 |
40 |
275 |
18 |
|
Gr12 |
70 |
483 |
50 |
345 |
18 |

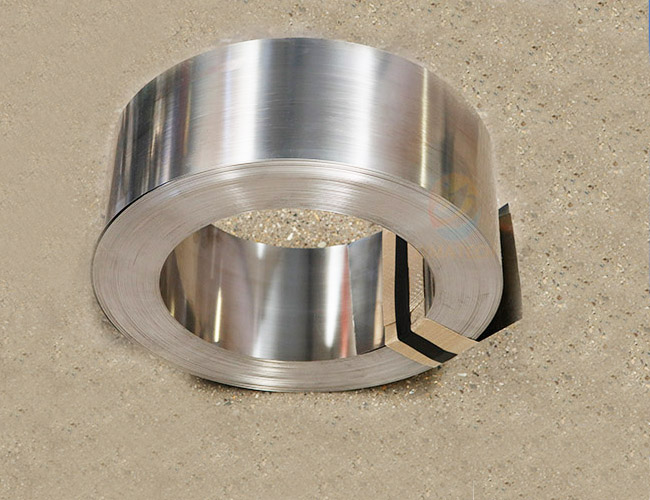

Pure Titanium Strip Picture:
Application of Pure Titanium Strip
Pure titanium strip is used for welding, such as welding of various titanium equipment, welding of welded tubes, repair welding of aircraft jet turbine discs and blades, and welding of casing.
