Molybdenum Copper Plate
Molybdenum Copper Plate Application
Molybdenum copper alloy is a composite material composed of molybdenum and copper, which is more suitable for processing and mass production than tungsten copper. Molybdenum Copper Plate is the most commonly used high-temperature material and electrical contact material. It can be processed by liquid phase sintering or skeleton melt infiltration. It is often used as electrode material, electrical contact material, mold material, heat-resistant element, tray bearing element, wear-resistant parts and other high-temperature resistant parts, which can effectively improve the processing rate and stability of equipment operation.
Molybdenum Copper Plate has also been widely used in the aerospace field, mainly used to manufacture high-temperature parts such as engine parts, fuel nozzles and combustion chamber linings, which can ensure the stable operation of spacecraft in high temperature, high pressure and strong corrosion environment. It can also be used as an anti-corrosion material for fluid equipment and gas transmission equipment in the chemical industry.
Molybdenum Copper Plate Features：
1. High melting point, high strength, high toughness, good ductility, easy to process into various special-shaped parts.
2. It has good corrosion resistance and can maintain good surface condition in corrosive media such as acid, alkali and salt
3. Good thermal conductivity, strong heat dissipation, low adjustable coefficient of thermal expansion, can maintain good performance under high temperature conditions
4. Good electrical conductivity, low resistivity, wear resistance, durable, cost-effective
Molybdenum Copper Plate Specifications:
|
Grade |
Mo70Cu30,Mo80Cu20 |
|
Technique |
Hot Rolling,Cold Rolling,Sintering,Annealing,Drawing |
|
Purity |
Molybdenum Content :50%-85% |
|
Length |
<1000mm |
|
Thickness |
0.05-10mm |
|
Width |
<500mm |
|
Density |
9.5g/cm3-10.2g/cm3 |
|
Surface |
Polishing,Alkali Cleaning,Machining,Grinding |
|
Standard |
GB,JIS,ASTM |
|
Certification |
ISO9001 |

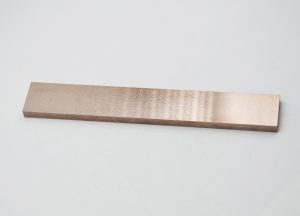

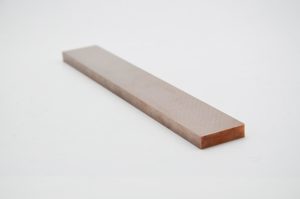

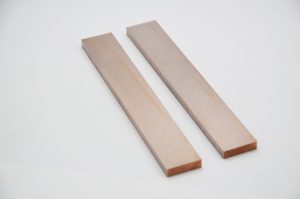

Molybdenum Copper Plate Pictures
