Pt70/Ir30 Platinum-Iridium Alloy Wire

Pt70/Ir30 Platinum-Iridium Alloy Wire Description

Platinum and iridium are chemical similar, but platinum is more stable and iridium is more corrosion resistant. Platinum iridium wire is widely used in thermocouples because of its stable material structure and not easy to corrosion and oxidation. Pt 70 / Ir30 Platinum-Iridium Alloy Wire is made of high-performance platinum and iridium material through powder metallurgy industry. It has the advantages of high hardness, high melting point, high corrosion resistance, low contact resistance, high size accuracy, high toughness, strong corrosion resistance, long service life, good electrical conductivity, long service life, good biocompatibility and so on. Pt 70 / Ir30 Platinum-Iridium Alloy Wire high temperature thermocouples can also be applied to aviation engine ignition contacts, high sensitivity relay and micromotors, potentiometers and conductive rings for precision sensors, gossamer for precision instruments, standard resistance and weights, and artificial medical equipment.

Pt70/Ir30 Platinum-Iridium Alloy Wire Specifications:

Material

Pt70/Ir30

Diameter

0.025mm-6mm

Length

≤2000mm

Density

21.75g/cm3

Tensile strength

240MPa

Melting point

1840℃

Delivery Time

15-20 days

Surface

Black,Alkaline Cleaning,Polishing,Bright

Standard

ASTM,GB

Certification

ISO 9001

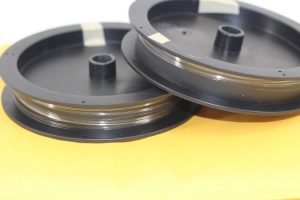

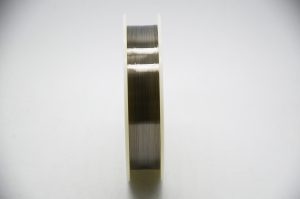

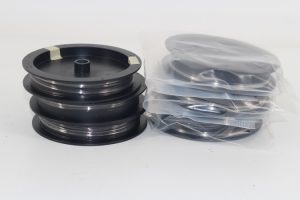

Pt70/Ir30 Platinum-Iridium Alloy Wire Pictures

Platinum-Iridium Alloy Wires Platinum Iridium Alloy Wire Platinum-Iridium Alloy Wire
