Tantalum Bar And Tantalum Rod
Tantalum Bar And Tantalum Rod Description
We use high purity tantalum powder after pressing molding, high temperature sintering, forging processing, repeated rolling, machining, surface treatment, and other processes. All products are ISO certified and can accept custom service.
Features
- High melting point, low steam pressure, strong deformation resistance, good high temperature resistance.
- High strength, high hardness, good ductility, able to withstand greater external force and pressure, not easy to deformation and fracture,
- Good electrical conductivity can effectively transmit current and help to improve the performance and stability of electronic equipment.
- Excellent corrosion resistance and oxidation resistance, stable in various chemical environments.
- Non-toxic environmental protection, good biocompatibility, long service life
Application
- Electronic field: tantalum capacitors made of tantalum rods have the advantages of small size, large capacity, and good stability and are widely used in computers, mobile phones, and other communication equipment.
- Chemical field: can be used to manufacture chemical equipment in the reactor, heat exchanger, pipeline, valve,s and other componentsimprovingve the operating efficiency and service life of equipment.
- Aerospace: This an be used to manufacture combustion chambers, turbine blades, nozzles, and other high-temperature components of aircraft engines to ensure the normal operation of the engine.
- Glass manufacturing: The electrode material of the glass furnace, which plays an efficient electrical and thermal conductivity role in the melting process.
Tantalum Bar And Tantalum Rod Dimension
|
Grade |
RO5200/RO5400 |
|
Purity |
Ta≥99.95% |
|
Technique |
Annealed, Hot-Rolled, Cold-Rolled, Welding, Forging |
|
Diameter |
3-100 mm |
|
Length |
200mm-1500 mm |
|
Tensile Strength |
207 MPa |
|
Density |
16.6g/cm3 |
|
Surface |
Black, Alkaline cleaning, Polished |
|
Standard |
ASTM B521, GB/T 8182 |
|
Certification |
ISO 9001 |

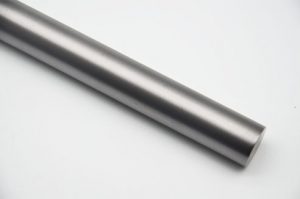

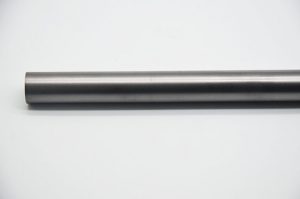

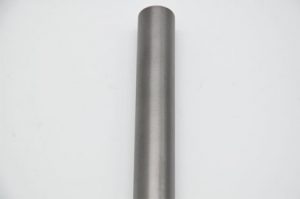

Tantalum Bar And Tantalum Rod Pictures
