Tungsten Copper Alloy Round Bars/Rods Price per kg
Tungsten Copper Alloy Round Bars/Rods Price per kg
Tungsten Copper Alloy Round Bars/Rods Feature:
w70cu30, w75cu25, w80cu20, w85cu15, w90cu10 tungsten copper alloy rod/copper tungsten alloy rod EDM electrode
1. Good anti-arc burning and anti-erosion performance;
2 High hardness, high density, high strength, high heat resistance;
3. Excellent thermal and electrical conductivity;
4.4. Ease of processing. w70cu30, w75cu25, w80cu20, w85cu15, w90cu10 tungsten copper alloy rod/copper tungsten alloy rod EDM electrode
Tungsten Copper Alloy Round Bars/Rods application
Tungsten Copper Alloy Round Bars/Rods are used in products or components that require high heat resistance, low thermal expansion, and high electrical or thermal conductivity. This alloy is also made into sheet metal, tubing and sheet metal. Copper-tungsten alloys are used in the manufacture of contacts for high-voltage and medium-voltage electrical equipment, and in high-speed steel. Tungsten copper is used in the manufacture of engines and electrical equipment. It is also used in aviation and aerospace. Electrodes, refractory parts, heat sinks, rocket parts, electrical contacts, etc. are all made of copper-tungsten alloy.
Its manufacturing process is as follows: compact the refractory metal, sinter the compacted compact at high temperature, and immerse it in copper. All of this is done under strictly controlled conditions. The result is a relatively hard material with superior arc and abrasion resistance, high physical properties: at high temperatures, and good electrical and thermal conductivity.
Tungsten Copper Alloy Round Bars/Rods Specifications:
|
Commodity Name |
Tungsten Copper Alloy Bar |
|
Size |
Dia12.7×34.8mm |
|
Composition |
75%Tungsten 25%Copper |
|
Density |
14.5g/cm3 |
|
Hardness |
HB195 |
|
Electrical Resistivity |
4.5 |
|
Electric Conductivity(IACS%) |
38 |
|
Standard |
GB/T 8320-2003 |
|
Application |
Electrode or High Temperature Materials |

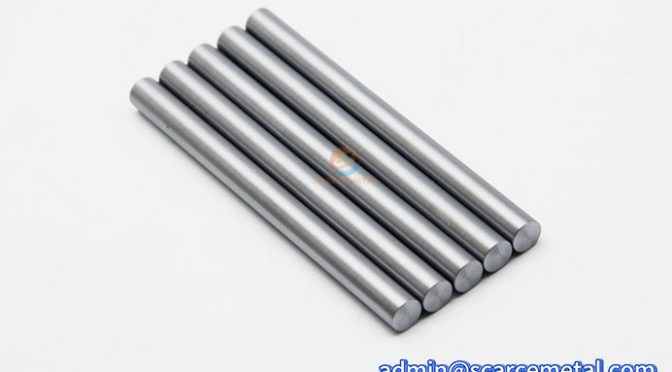

Tungsten Copper Alloy Round Bars/Rods Picture:
