Tungsten Copper Alloy Wheels
Tungsten Copper Alloy Wheels
Tungsten Copper Alloy Wheels act as the wheel-shaped electrode material in the seam welding machine. During the welding process, the upper and lower annular electrodes clamp the workpiece to be welded, and drive the welding machine to form continuous electric discharge machining to melt high-precision and high-quality parts. W75Cu25 Machined Tungsten Copper Alloy Wheels are made of high-quality tungsten-copper mixed powder, pressed and sintered at high temperature, rolled forged and machined. It has all the excellent characteristics of tungsten and copper, such as high wear resistance and outstanding surface quality,good machinability, excellent electrical conductivity, stable microstructure, strong arc ablation resistance, good high temperature resistance and strong durability, etc. W75Cu25 Machined Tungsten Copper Alloy Wheels can be used as resistance welding seam welding electrode and EDM electrode, and the parts welded by it can exert excellent performance in nuclear industry, petrochemical industry, medical treatment, aerospace and shipbuilding industry.
Tungsten Copper Alloy Wheels Specifications:
|
Material |
W75Cu25 |
|
Technique |
Forging,Sintering,Rolling,HIP,Machining,Injection Molding process |
|
Outer Diameter |
50-180mm |
|
Inner Diameter |
10-60mm |
|
Height |
5-40mm |
|
Hardness |
88-98HRB |
|
Conductivity |
34-42% IACS |
|
Density |
13.9-15.2g/cm3 |
|
Surface |
Polished,Bright,Chemical Cleaning,Black Oxide,etc. |
|
Standard |
ASTM B702,GB |
|
Certification |
ISO9001 |

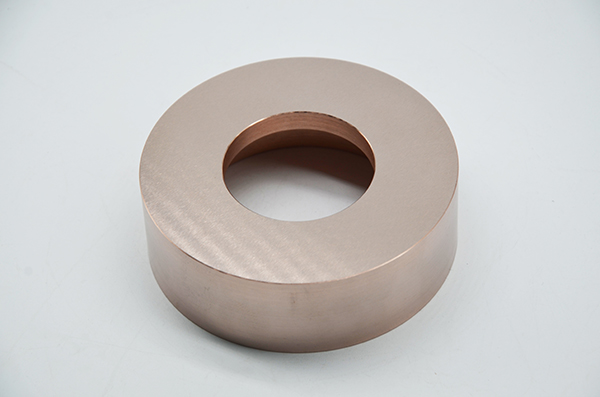

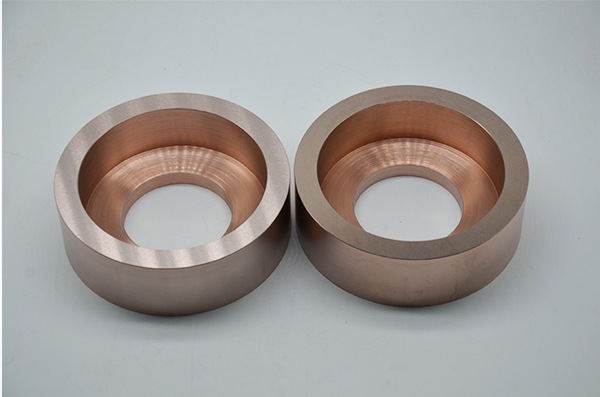

Tungsten Copper Alloy Wheels Picture:
