Tungsten W Target For X-Ray Tubes

Tungsten W Target For X-Ray Tubes Description

An X-ray tube generally consists of an anode, cathode, target material, and an index indicator area. Of these, the target material is the area where electrons are bombarded, receives the current, and produces high-energy electrons that collide with atomic nuclei to form X-rays. It also determines the overall quality of the measurement device. Tungsten W Target For X-Ray Tubes is made from high-purity tungsten material after being subjected to high-temperature sintering, pressing, forging, cutting, polishing, etc. It can withstand high-energy electron beam bombardment without melting easily to produce higher energy output and reduce scattering effects to improve image clarity. The target material contains all the superior physical and chemical properties of tungsten, such as high melting point, high conductivity, easy processing, easy polishing, light weight, high tensile strength, good high-temperature stability, corrosion resistance, long service life, and environmental protection. Tungsten W Target For X-Ray Tubes can be used in the fields of medical diagnosis and treatment, industrial nondestructive testing, electronics and vacuum electronics, glass industry, solar industry, and metal smelting.

Tungsten W Target For X-Ray Tubes Specification

Grade

W1,W2

Purity

≥99.95%

Diameter

5mm-30mm

Thickness

0.5-8mm

Melting Point

3410℃

Density

18.95g/cm3

Surface

Polished,Grounded

Delivery Time

20days

Standard

ASTM,GB

Certification

ISO9001

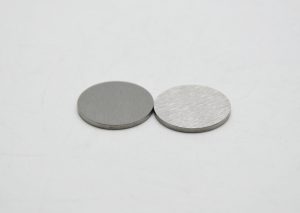

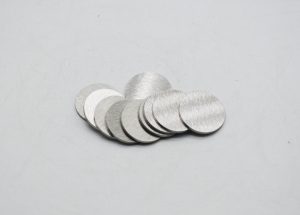

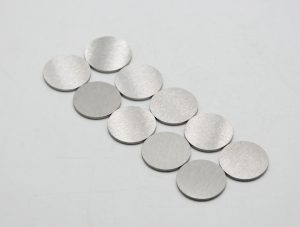

Tungsten W Target For X-Ray Tubes Picture

Tungsten Target For X-Ray Tube Tungsten W Target X-Ray Tube Tungsten W Target
