TZM Machined Part
TZM Machined Part
TZM Machined Part has the characteristics of high melting point, high strength, high elastic modulus, small linear expansion coefficient, low vapor pressure, good electrical and thermal conductivity, strong corrosion resistance, and good high-temperature mechanical properties.
TZM alloy is currently the best high-temperature molybdenum alloy material. It is a solid solution hardened and particle-reinforced molybdenum-based alloy. Its composition is 0.50% titanium, 0.08% ZR, and the remaining 0.02% carbon molybdenum alloy.
People add trace elements such as titanium and zirconium to molybdenum to form trace element alloyed alloys (such as Mo-0.5Ti, Z-6, etc.) to remove the grain boundary embrittlement phase and its reactants (TiC, ZrC) acts as a dispersive phase to strengthen the alloy to improve its performance.
TZM Machined Part (molybdenum ZR titanium alloy) also has good welding properties and can be welded well with materials such as H11 steel. At the same time, TZM alloy can resist the corrosion of Zn and other molten metals. It can be cold worked by conventional methods. In the presence of cooling lubricating oil, it can be machined with cemented carbide or high-speed steel tools.
Component isostatic pressing, sintering and heat treatment furnace
TZM Machined Part Specification:
Material: TZM Alloy (0.4-0.54% Ti, 0.06-0.12 %Zr, 0.01-0.04% C, balance Mo)
(typically 0.5% Ti, 0.08 %Zr, 0.02% C, balance Mo)
Standard: ASTM B386 type 364 / B387 type 364
Dimensions: Custom-made per drawing
Application range: The structural element of the furnace, used for casting aluminum alloy, bronzing mold insertion. Rocket nozzle and electrode.
The many advantages of TZM alloy (molybdenum-zirconium-titanium alloy) make it very widely used. Its good mechanical properties under high temperature and high pressure make it widely used in the military industry, such as gas valve bodies in torpedo engines, rocket nozzles, gas pipelines, nozzle throat linings; and used as color picture tube glass bulb production lines The main shaft of the stirrer is coated with platinum and rhodium in the upper glass melting furnace to take advantage of its corrosion resistance to liquid metal;
TZM alloy has good mechanical properties, especially at high temperatures. The mechanical properties of TZM alloy are better than pure molybdenum.

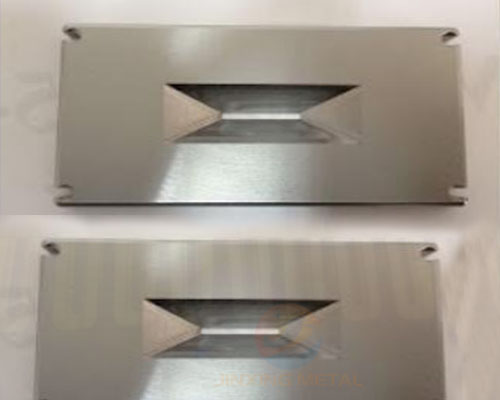

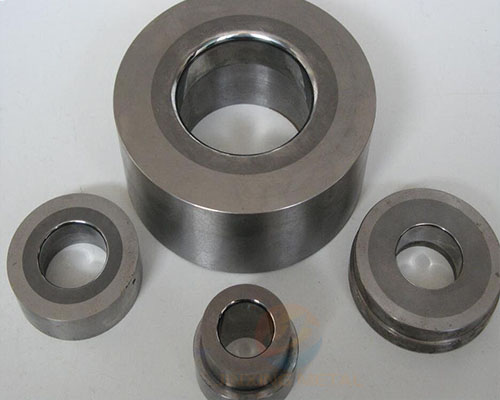

TZM Machined Part Picture:
High temperature tensile strength and elongation at break of TZM alloy
material |
density(g/cm3) |
|
Boiling point(℃) |
TZM |
10.22 |
2617 |
4612 |
temperature/℃ |
RT |
1000 |
1200 |
1300 |
1400 |
Tensile Strength/ MPa |
1140-1210 |
700-720 |
320-360 |
190-210 |
140-170 |
Elongation at break/% |
7.5-13.0 |
5.2 |
9.0 |
11.5-13.5 |
11.0-16.0 |
