Wcu Alloy Sheet Most Popular Tungsten Copper Alloy Plate
Wcu Alloy Sheet Most Popular Tungsten Copper Alloy Plate
Wcu Alloy Sheet are used in the manufacture of engines and electrical equipment. High-speed steel equipment and switches, electrodes, refractory components, radiators, rocket components and contacts for making high and low voltage electrical equipment are all made of WCu alloy.
The electrical discharge erosion (EDM) process requires copper tungsten. Usually this process is used for graphite, but tungsten has a high melting point. This gives CuW electrodes a longer lifetime than graphite electrodes.
Adopt CIP forming, sintered tungsten skeleton and copper (silver) infiltration technology to produce large-sized and special-shaped products of WCu composite materials containing 6-90% copper, such as electrical contacts, electrodes, radiators, rocket components, refractory parts, etc. , It can also produce WCu alloy plates, pipes, plates and other small products by molding, extrusion, MIM and other methods.
Wcu Alloy Sheet Specification
|
Name |
Tungsten Copper Alloy Sheet |
||||||||
|
Tungsten content |
Cu-W75,Cu-W80,Cu-W85,Cu-W90,Cu-W95 |
||||||||
|
Other products |
Plate, bars, tubes, round and processing according to your drawings. |
||||||||
|
Size |
L * W * T (customized) |
||||||||
|
|
|||||||||
|
Brand |
Chemical content (%) |
Density (g/cm3) |
Resistance (uΩ/cm) |
IACS (%) |
Hardness HB |
||||
|
Cu |
Impurity |
W |
|||||||
|
Cu-W70 |
30±2 |
0.5 |
balance |
14.1 |
4.1 |
42 |
115 |
||
|
Cu-W75 |
25±2 |
0.5 |
balance |
14.7 |
4.5 |
38 |
195 |
||
|
Cu-W80 |
20±2 |
0.5 |
balance |
15.4 |
5 |
34 |
220 |
||
|
Cu-W85 |
15±2 |
0.5 |
balance |
16.2 |
5.7 |
30 |
210 |
||
|
Cu-W90 |
10±2 |
0.5 |
balance |
17 |
6.5 |
27 |
260 |
||
|
Cu-W95 |
5±2 |
0.5 |
balance |
17.8 |
7.5 |
24 |
– |
||
|
We can produce various specifications according to your requirement. |
|||||||||
|
Application |
Tungsten copper Alloy (W-Cu alloy) is the composite of tungsten and copper which own it excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation. |
||||||||

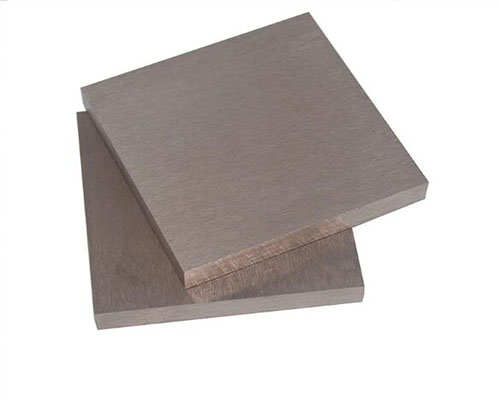

Wcu Alloy Sheet Picture:
1. We are a manufacturer with more than 18 years of production experience, and we have ISO9001:2008 certificate and CE certificate.
2. Our company is high & new technology enterprise specially engaged in developing, manufacture and selling Molybdenum & Tungsten & Titanium Products, MoSi2 heating elements & SiC heating elements, lab muffle furnace and its accessories etc.
3. With the advantages in Technology, equipment, scale and management, Our company lies in the leading station of this field. and well-equipped, quality first-class, our products enjoys high reputation for its high quality in domestic and abroad. Owing to the keen consciousness of quality and commercial reputation, the products are exported to USA, Europe, Middle East, South East, Asia, Russia and Korea etc around the world.
