Zirconium Rod And Disc
Zirconium Rod And Disc Description
We use high-purity zirconium alloy materials through a series of processing techniques such as high-temperature sintering, casting, forging, rolling, stretching, cutting, polishing, etc., and carry out performance testing and quality control before shipment.
Features
- High strength and hardness : Zirconium performs well under pressure and mechanical loads, maintaining excellent performance under a variety of complex operating conditions .
- Excellent corrosion resistance: Zirconium 702 performs well in a variety of acid solutions, such as strong acids, strong bases, etc., can maintain good stability and is not easy to be corroded and oxidized .
- Excellent high temperature resistance: the melting point of zirconium is as high as 1852℃, which can maintain stable performance in high temperature environment. Its surface will spontaneously form a protective oxide film, even at a high temperature of 300 ° C, it can effectively protect the substrate from corrosion and damage.
- Good mechanical properties and ductility: the tensile strength of zirconium 702 can reach 380MPa, the yield strength is 205MPa, and the elongation is 16%.
- Good electrical and thermal conductivity , low coefficient of linear expansion, easy to weld
- Good biocompatibility , wear resistance, long service life
Application
Zirconium Rod can be widely used to make control rods in the nuclear industry, engine parts in aerospace, corrosion-resistant parts of chemical equipment and marine engineering equipment, solar cell materials, and artificial joints in the medical field.
Zirconium Disc is often used as a sputtering target in the electronics industry to deposit high-quality zirconium films to attach to semiconductor devices and optical devices, and can also be used in high-temperature processing, machinery manufacturing, nuclear energy industry, aerospace and medical equipment. Zirconium film can not only provide stable electrical properties, but also improve the transmittance and anti-reflection properties on the surface of optical lenses.
Zirconium Rod And Disc Dimension
|
Grade |
702 |
|
Purity |
≥99.6% |
|
Diameter |
10-600mm |
|
Length |
120-2500mm |
|
Thickness |
5-40mm |
|
Melting point |
1855°C |
|
Density |
6.49g/cm3 |
|
Shape |
Round |
|
Surface |
Polishing,Bright |
|
Standard |
ASTM,GB |
|
Certification |
ISO9001 |

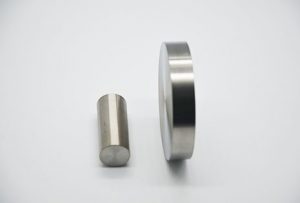

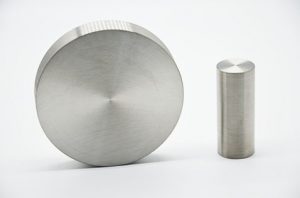

Zirconium Rod And Disc Pictures
